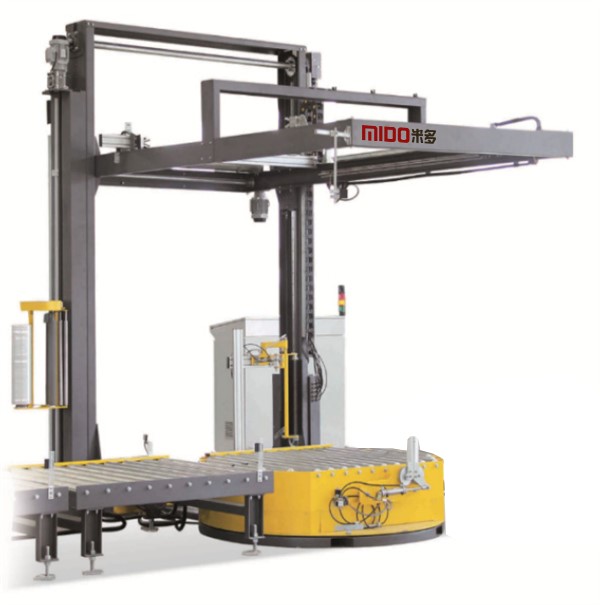

全自动圆盘覆顶缠绕机

主要特点


全自动圆盘覆顶缠绕机主要适用于生产量大、自动化高的现代化企业。自动完成货物的感测、缠膜、输送等全过程,输送机构采用滚筒、链条等方式。自动上断膜机构可实现无人化操作。设备主体结构碳钢烤漆;预拉伸膜架,张力可调;全自动上膜,断膜,抚摸机构,剪切断膜。设备由圆盘缠绕包装机、主机支架、动力输送线、自动上断膜机构及控制系统组成。广泛应用于医药、石化、食品、饮料、化工等行业。
本机通过顶部覆膜工位自动托盘覆膜,圆盘自动缠绕,可设置缠膜高度,层数,拉伸度,确保产品缠膜牢固紧密安全;
适用市面通用拉伸膜尺寸规格,更换简单;
相关参数可在现场机或集中控制系统内进行对缠膜参数设定;缠绕规格、缠绕膜升降速度、松紧程度随时可调,方便迅速;
自动感应货物高度;多功能,适合单个或多个圆柱型组合包装要求及一般包装物;


Main features


Fully automatic disc top wrapping machine is mainly suitable for modern enterprises with large production volume and high automation. The whole process of sensing, wrapping and conveying the goods is automatically completed. The conveying mechanism adopts rollers, chains, etc. The automatic film breaking mechanism can realize unmanned operation. The main structure of the equipment is carbon steel baking varnish; pre-stretched film frame, adjustable tension; automatic film application, film breaking, stroking mechanism, cutting film. The equipment consists of a disc wrapping packaging machine, a mainframe support, a power conveying line, an automatic film up and down mechanism and a control system. It is widely used in medicine, petrochemical, food, beverage, chemical and other industries.

This machine uses automatic tray laminating at the top laminating station, and the disc is automatically wrapped. The wrapping height, number of layers, and stretching can be set to ensure that the product is wrapped tightly and securely;

Applicable to the general-purpose stretch film size specifications in the market, easy to replace;

Relevant parameters can be set in the on-site machine or centralized control system for the wrapping parameters; wrapping specifications, wrapping film lifting speed, and tightness can be adjusted at any time, which is convenient and fast;

Automatically sense the height of the goods; multi-functional, suitable for single or multiple cylindrical combination packaging requirements and general packaging;


主要技术参数 / The main technical parameters:

• 防爆类型:Exd ii BT4 / Explosion-proof type: Exd ii BT4

• 载荷:2000kg(最大)/ Load: 2000kg (maximum)

• 转盘尺寸mm:φ2000 / Turntable size mm: φ2000

• 包装效率:约30托/小时 / Packaging efficiency: about 30 torr/hour

• 转盘速度:0-12转/分钟 / Turntable speed: 0-12 revolutions per minute

• 膜架类型:预拉伸比250%,张力可调

Film frame type: pre-stretching ratio 250%, adjustable tension

• 适用膜厚:厚度15~20um,外径≤Φ250mm,宽≤500mm,内芯≥Φ76mm。

Applicable film thickness: thickness 15-20um, outer diameter≤Φ250mm, width≤500mm, inner core≥Φ76mm.

• 圆盘断膜方式:缠绕机剪切断膜

Disc film breaking method: winding machine cut film

• 顶膜断膜方式:机械式断膜

Top film breaking method: mechanical breaking film

• 顶膜升降装置:0-1800mm可调节(电动升降,链条驱动)

Top film lifting device: 0-1800mm adjustable (electric lifting, chain drive)

• 电源:AC380V/50Hz;3.8kW / Power supply: AC380V/50Hz; 3.8kW

• 气源压力:0.4-0.6MPa / Air pressure: 0.4-0.6MPa
